Paper Mill
BOWMAN SOLVES 40 YEARS OF BEARING ISSUES FOR LEADING PAPER MANUFACTURER
Client Challenge
One of the world’s leading pioneers in advanced materials and paper products, had
experienced over 40 years of bearing maintenance, inspection, and replacement issues at its paper mill in the UK.
In total there were 136 bronze shell bearings in cast iron housings, supporting the hollow shafts of the mill’s drying cylinders.
Due to access constraints and the steam temperatures associated with drying applications, inspecting and maintaining what had become an obsolete bearing design, required significant downtime.
In more recent years, replacing this legacy bearing product had become significantly more challenging, with no adequate engineering knowledge of older bearing designs onsite.
The mill needed a bearing that could withstand the high temperatures and excessive thermal shaft expansion, whilst offering fast and safe access for maintenance and inspection.
Furthermore, the customer was looking for a supplier that offered fast delivery from a reliable stock inventory, so that when a changeout was needed, downtime would be minimal.
Bowman Solution

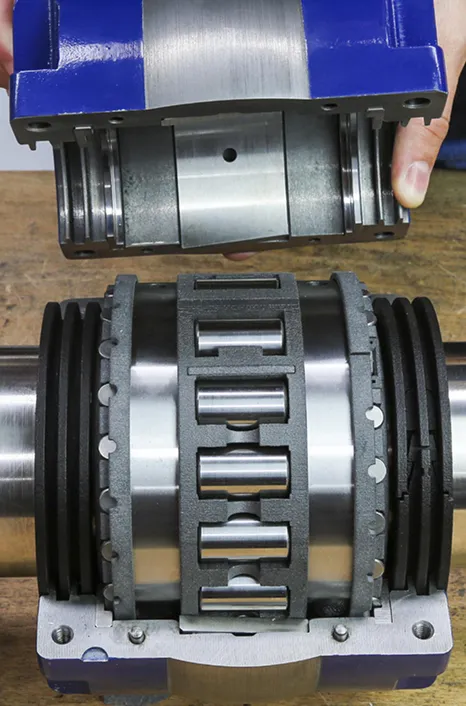

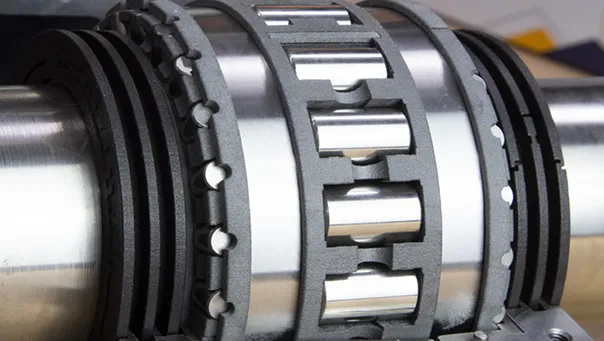

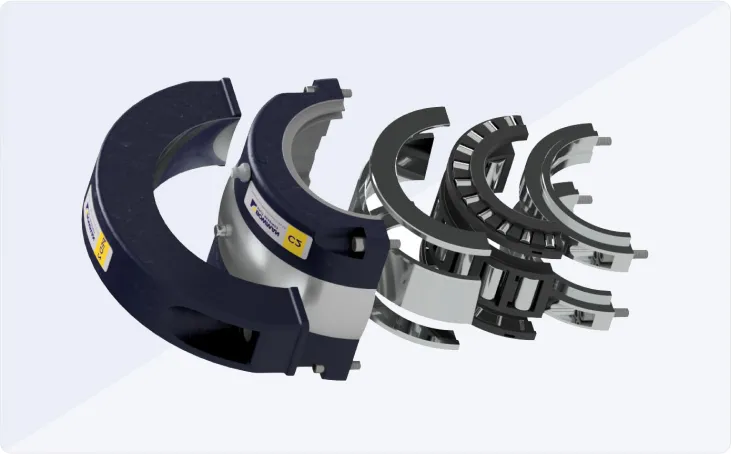

Unaware that there was a split roller bearing on the market capable of meeting its needs, especially within a retrofitted footprint, the mill was delighted when Bowman introduced its class-leading high capacity Advanced Split Roller Bearing.
Dimensionally interchangeable and capable of delivering faster change outs, plus quick and safe access for maintenance and inspection, this market-first split bearing was the ideal upgrade for the mill’s drying cylinders. An initial four assemblies were installed with the support of Bowman’s field service engineers. Whilst onsite, Bowman supported the mill’s maintenance engineers in learning a new, far simpler installation process, showcasing first-hand the potential reduction in man-hours compared to the legacy bearings that had troubled the team for over four decades..
Following an initial period of performance testing, the mill agreed to further investing in complete Bowman Advanced Split Roller Bearing assembles.
KEY PROJECT STATISTICS
- Paper mill drying cylinder application
- High temperature environment
- Hollow shafts with excessive thermal growth
- Longstanding maintenance, inspection and replacement issues
- Upskilling onsite engineers to maintain uptime

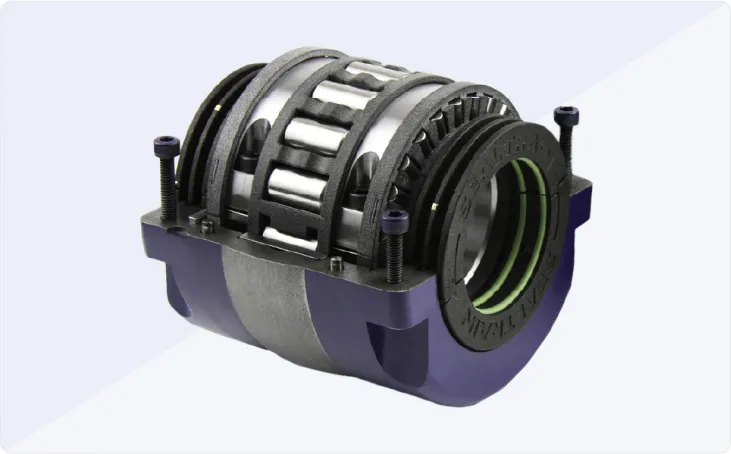

BEARING TECHNICAL DETAILS
- Shaft diameter: 6 inch
- Maximum dynamic radial load: 634 kN
- Maximum static radial load: 1040 kN
- Maximum dynamic axial load: 233 kN
This customer, a steel processing site in Mainland Europe, needed four easy to install, high-capacity split roller bearing capable of reducing downtime during maintenance and changeouts. The access area was restricted and hard to reach, meaning a large health and safety perimeter was required for any bearing inspection or replacement.
Bowman combined its in-house customised bearing design service, with its Advanced Split Bearing innovation, and onsite support solutions to reduce downtime by 50%.
Matthew Simmons, Technical Manager, Bowman Split Bearings
